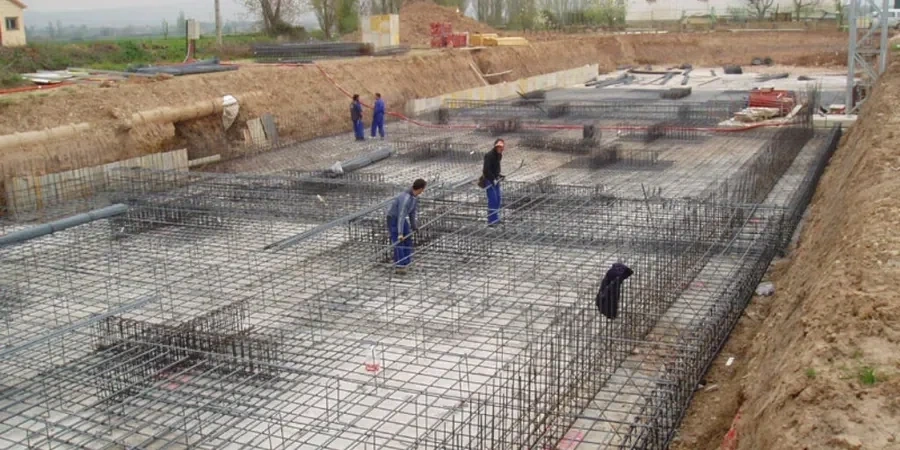

A track-mounted drill rig positions itself over a grassy lot in Langley Township, its hollow-stem auger rotating steadily into the ground. The crew logs the cuttings at every foot: silty clay from zero to seven feet, then a dense, grey glacial till that makes the rig torque up. Shallow foundation design here depends entirely on that till’s top elevation and consistency. In the Willoughby and Brookswood uplands, the till often sits within reach of a standard backhoe, making spread footings a practical choice. Down in the Nicomekl floodplain, soft organic silts extend much deeper, and footings need either over-excavation and re-compaction or an engineered fill pad to control settlement before the concrete is poured. The design process starts with a site-specific investigation to measure the undrained shear strength of the upper cohesive layer and the SPT N-value of the bearing stratum. We then run bearing capacity calculations using the general shear failure equation with appropriate factors for the local groundwater conditions, which typically sit within a metre or two of the surface in the lower parts of the city.
Bearing failure in Langley’s silty clays is rarely the problem. Differential settlement from variable compressibility across the footprint is what keeps engineers up at night.
Method and coverage
Regional considerations
The surficial geology across Langley is dominated by Vashon till and Capilano sediments, but the real hazard lies in the buried pre-Vashon channels filled with soft, normally consolidated silt. A footing placed above one of these channels can experience over 50 mm of differential settlement while the adjacent corner rests on stiff till and barely moves. That kind of angular distortion cracks masonry walls and jams doors. The Township of Langley requires a geotechnical investigation for any building over 600 m² or three storeys, but even a single-family home on a suspect lot benefits from a targeted investigation. We also evaluate the seismic settlement potential using the NBCC 2020 hazard values for the Metro Vancouver region. While shallow foundations on competent till generally perform well under the design earthquake, those on loose saturated sands may require a liquefaction screening using the SPT-based method from Youd and Idriss (2001). If the factor of safety drops below 1.2, the design shifts to either Improvement or a deep foundation alternative to protect the structure.
Standards that apply
NBCC 2020 (Division B, Part 4), CSA A23.3:19 (Design of Concrete Structures), CFEM (Canadian Foundation Engineering Manual, 4th Edition)
Complementary services
Bearing capacity and settlement analysis
We compute the ultimate and allowable bearing pressure for spread footings and strip footings using the general bearing capacity equation with Vesic’s factors. The settlement analysis separates immediate and consolidation components, and we provide the modulus of subgrade reaction for structural modeling of mats.
Construction review and subgrade inspection
During excavation, our engineer inspects the bearing surface to confirm the soil conditions match the design assumptions. We perform dynamic cone penetration tests or plate load tests if the exposed subgrade appears weaker than expected, and issue a bearing surface approval letter for the municipal building inspector.
Typical parameters
Top questions
When does a Langley project need a shallow foundation design instead of just a prescriptive footing?
The BC Building Code allows prescriptive footings on “undisturbed, dense, or stiff soil” but Langley’s variable geology makes that classification unreliable without a borehole. Any project on a slope steeper than 15%, on fill, or within 30 m of a watercourse should have a site-specific design. The Township typically requests a sealed geotechnical letter for building permits on lots flagged in the floodplain overlay.
What’s the typical cost range for a shallow foundation design report in Langley?
A complete package — including one machine-dug test pit or SPT borehole, laboratory classification and consolidation testing, and the stamped design letter — runs between CA$2,310 and CA$4,210 depending on access constraints and the number of footing types. A simple single-family lot on accessible till is at the lower end; a sloped lot requiring two boreholes and a retaining wall check is at the higher end.
How deep do footings need to go in Langley to avoid frost heave?
The NBCC prescribes a minimum 1.2 m cover below finished grade for the Metro Vancouver climate zone. In practice, we often specify 1.2 m to the underside of the footing, with the caveat that the bearing stratum itself must be below any disturbed or organic surface layer, which occasionally pushes the excavation deeper than the frost depth alone.
Can you design a shallow foundation on a Langley lot with high groundwater?
Yes, it’s common in the floodplain areas. We handle it by dewatering the excavation during construction and using a granular working mat. The bearing capacity equation incorporates the buoyant unit weight of the soil below the water table, so the allowable pressures are adjusted accordingly. We also check that the final floor elevation meets the Township’s flood construction level requirements.
What’s the difference between an allowable bearing pressure and an ultimate bearing capacity?
Ultimate bearing capacity is the theoretical pressure that causes shear failure of the soil; we divide it by a factor of safety of 3.0 to get the allowable pressure. However, in Langley’s cohesive soils, settlement almost always governs before shear failure, so the final recommended bearing pressure is often lower than the allowable value from the shear equation to keep total settlement under 25 mm and differential settlement under 19 mm.
