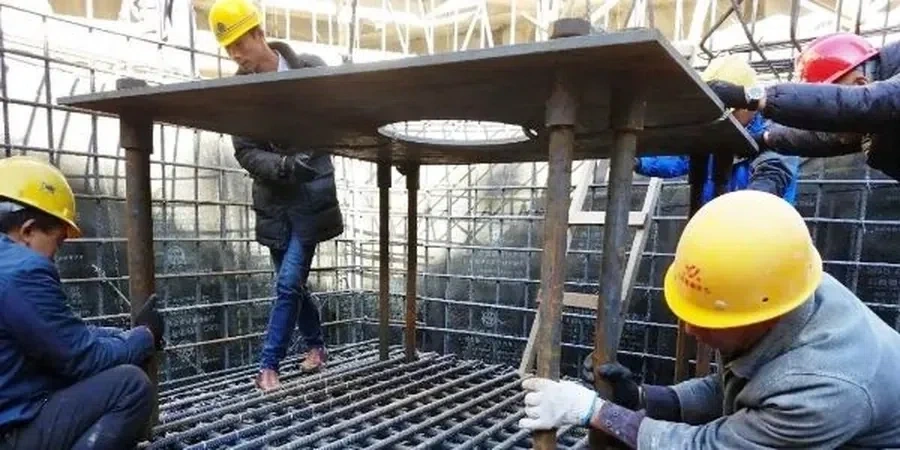

The Fraser River delta sediments under Langley present a quiet but persistent challenge: soft marine clays and glacial tills that amplify seismic motion in ways that rigid foundation designs struggle to manage. At 49.1°N latitude, the Township sits in NBCC seismic zone 4, where the combination of deep unconsolidated soils and proximity to the Cascadia subduction zone demands more than conventional bearing capacity checks. Our laboratory runs site-specific dynamic testing programs — resonant column, cyclic triaxial, and bender element — to feed the soil-structure interaction models that base isolation systems depend on. Every set of modulus reduction and damping curves we produce ties directly to the isolator properties the structural engineer will specify. Before committing to an isolation strategy, the liquefaction susceptibility of the underlying sand layers must be quantified, and the stiffness profile from a MASW survey helps constrain the dynamic properties across the site period range.
A well-tuned base isolation model in Langley requires shear modulus degradation curves measured at confining pressures matching the exact depth of each soil unit — generic literature values will not capture the Fraser Valley stratigraphy.
Method and coverage
- Resonant column testing per ASTM D4015 for low-strain shear modulus
- Bender element measurements for small-strain compression wave velocity
- Consolidation tests to define the stress history that controls normalized modulus curves
Regional considerations
The triaxial cell sits inside a temperature-controlled chamber at 20±1°C, its latex membrane enclosing a 50 mm diameter specimen trimmed from a Shelby tube recovered at 12 metres depth beneath the Willoughby area. Back-pressure saturation reaches Skempton B-values above 0.96 before the consolidation stage begins, replicating the in-situ effective stress the soil has felt for ten thousand years. If the cyclic loading protocol fails to capture the correct number of equivalent uniform cycles — 15 to 25 for a M8.5 Cascadia event versus 3 to 5 for a shallow crustal earthquake — the resulting pore pressure generation curve misleads the isolation period calculation. Our lab technicians monitor excess pore pressure transducers at the specimen base and mid-height throughout each stage; a single drainage path error can shift the liquefaction triggering curve enough to change the isolator displacement demand by 30 percent or more in the nonlinear time-history analysis.
Standards that apply
NBCC 2020 Part 4, Division B — Seismic Design provisions, Site Classification per Table 4.1.8.4.A, ASTM D3999/D3999M-11e1 — Standard Test Methods for the Determination of the Modulus and Damping Properties of Soils Using the Cyclic Triaxial Apparatus, ASTM D6528-17 — Standard Test Method for Consolidated Undrained Direct Simple Shear Testing of Fine-Grained Soils, ASTM D4015-21 — Standard Test Methods for Modulus and Damping of Soils by the Resonant-Column Method, CSA A23.3-19 — Design of Concrete Structures (Annex for seismic design of foundations), NCEER/NSF (Youd et al., 2001) — Liquefaction Resistance of Soils: Summary Report from the 1996 NCEER and 1998 NCEER/NSF Workshops
Complementary services
Dynamic Soil Characterization for Isolator Design
Full suite of strain-controlled cyclic triaxial, resonant column, and bender element tests on undisturbed specimens from each cohesive unit. We deliver normalized shear modulus reduction curves (G/Gmax vs. log cyclic shear strain), damping ratio curves, and pore pressure generation parameters formatted for direct input into PLAXIS, FLAC, or OpenSees soil models. Specimen preparation follows ASTM D4767 for saturated clays with strict B-value verification above 0.95.
Site-Specific Ground Motion Parameter Development
Combining in-situ Vs profiles (MASW or downhole) with laboratory dynamic properties to produce site-specific response spectra per NBCC 2020 Section 4.1.8.12. We perform 1D equivalent-linear and nonlinear site response analyses using DEEPSOIL or Strata, incorporating the measured modulus degradation and damping curves to refine the design spectral accelerations at the isolation plane. This package resolves the conservatism built into the default Class D/E code spectra for Langley's deep soil sites.
Typical parameters
Top questions
What dynamic soil properties does NBCC 2020 require for base isolation design in Langley?
NBCC 2020 Section 4.1.8.12 permits site-specific ground motion procedures that require shear wave velocity profiles to at least 30 m depth, plus modulus reduction and damping ratio curves for each soil layer above the seismic bedrock. For a base isolation project in Langley's Class D or E soils, the code expects either laboratory test data per ASTM D3999 or published curves justified by index property correlation. Our lab provides the measured G/Gmax and damping versus strain data that satisfies the site-specific analysis path, avoiding the conservative default site factors that can oversize isolators.
How much does a base isolation laboratory testing program cost for a Langley project?
A complete dynamic testing program for base isolation design in Langley — including resonant column, cyclic triaxial on three to five undisturbed specimens, bender element measurements, and index testing for correlation — typically falls between CA$5,000 and CA$11,860 depending on the number of soil units and the strain levels required. The final scope is defined after reviewing the borehole logs and the structural engineer's required parameter list.
How long does the cyclic triaxial testing take for a typical Langley project?
A single multi-stage cyclic triaxial test on a saturated clay specimen requires approximately 5 to 7 working days from specimen extrusion through final data reduction. This includes back-pressure saturation (often 24 to 48 hours for Langley's medium-plasticity clays), K0 consolidation to in-situ stress, and the staged cyclic loading protocol at three confining pressures. A full program with five specimens across two soil units typically delivers the final modulus and damping report within four weeks.
