We see too many excavation support plans in Langley that treat the entire Lower Mainland as a single geotechnical unit, and that’s where the trouble starts. A one-size-fits-all anchor design won’t cut it when you’re dealing with the transition from the glacially overconsolidated lodgment till on the uplands to the loose, compressible alluvium along the Nicomekl River floodplain. Our team’s approach to active and passive anchor systems accounts for this drastic shift in soil behavior within a few kilometers. For projects on the Township’s northern bench, we’ve often combined anchor design with a targeted in-situ permeability assessment because the silty till layers can trap perched groundwater, instantly changing the lateral earth pressures your wall will actually see.
A properly designed anchor in Langley’s lodgment till can develop a bond stress exceeding 150 kPa, but hit a silt lens and that value can drop below 30 kPa without warning.
Method and coverage
Regional considerations
Langley’s development history adds a complicating layer to anchor design that you won’t find on a typical geotechnical report. Before the Township’s rapid expansion in the 1990s, much of the valley bottom was agricultural with deep drainage ditches and undocumented fill placement. We’ve encountered buried organics and old farm debris at depths where anchors are supposed to find competent bearing stratum. A passive anchor bonded in what looks like native clay on a borehole log could be sitting in a pocket of decayed root mass with zero creep resistance. The NBCC 2020 explicitly requires consideration of such anthropogenic deposits, and a pure reliance on SPT blow counts without verifying the nature of the material can lead to a bond zone failure during proof testing. We mitigate this by correlating installation torque with a detailed desktop study of historical land use.
Process video
Standards that apply
CSA A23.3-19 (Annex D), PTI DC35.1-14, FHWA-NHI-10-024 (GEC No. 4), NBCC 2020
Complementary services

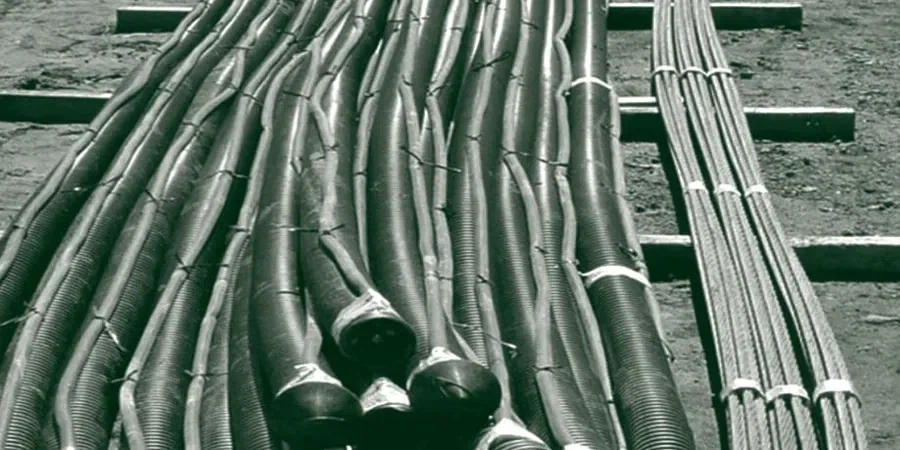

Active Anchor System Design
Post-tensioned tieback design for soldier pile and secant walls, including unbonded length analysis to ensure the bond zone is beyond the critical failure wedge. We specify the lock-off load and sequence to minimize wall deflection in sensitive urban interfaces.
Passive Anchor and Soil Nail Design
Self-drilling and open-hole passive anchors for slope stabilization and temporary excavation support. Our designs address the low confining stress near slopes in Aldergrove’s rolling terrain, where grout-to-ground bond values must be de-rated.
Proof Testing and Performance Verification
We write the testing specification and interpret the results. Our performance and creep test protocols, aligned with ASTM D3689, are mandatory for confirming that the anchor bond zone is seated in competent material, not in a Langley clay seam.
Typical parameters
Top questions
What is the difference between an active and a passive anchor?
From a structural standpoint, an active anchor is a stressed tendon that applies a pre-compressive force to the structure immediately upon lock-off, actively restraining movement before any soil displacement occurs. A passive anchor remains unstressed until the ground begins to deform and mobilize the tendon's resistance. In Langley’s sensitive clays, we often specify active anchors to limit initial wall deflection to less than 25 mm, whereas passive anchors are more suitable for long-term slope stabilization where gradual creep is acceptable.
How do you determine the bond length for an anchor in Langley’s clay?
The bond length is based on the undrained shear strength of the clay and the interface friction between the grout and the soil. We typically assume a uniform bond stress distribution for preliminary design, then refine it with site-specific pull-out test data. For the glacial lake clays common in the Willoughby area, we rarely exceed a bond length of 9 meters because the efficiency of stress transfer diminishes significantly beyond that point.
Do you handle the permit submissions for anchor designs in the Township of Langley?
Yes, we provide sealed engineering drawings and design reports that meet the Township of Langley’s requirements for shoring permits, including the structural review by a Professional Engineer registered in British Columbia. Our packages address the NBCC 2020 seismic provisions and the specific requirements for right-of-way encroachment if the anchors extend beyond the property line.
What is the typical cost range for an active anchor design in Langley?
For a complete anchor design package, including site-specific analysis, sealed drawings, and a testing specification, the fee typically ranges from CA$1,510 to CA$5,520. The final cost depends on the number of anchor rows, the complexity of the corrosion protection required, and the number of proof tests we specify.
How do you verify that an installed anchor meets the design capacity?
Every anchor we design must undergo a performance test or a proof test as per PTI and ASTM D3689 standards. We measure creep movement under sustained load and compare it against the acceptance criteria. If an anchor in a Langley till profile shows more than 1 millimeter of creep over a 60-minute period at 133% of the design load, we flag it for a full investigation before the lock-off load is applied.
